- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C33-X4
Product Abstract:

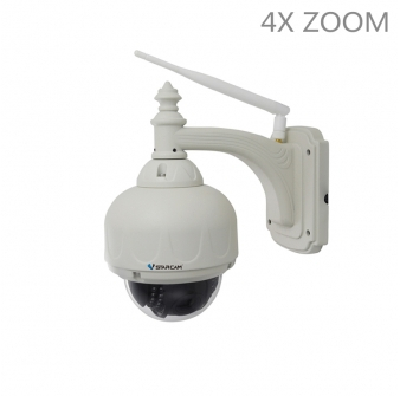

C33-X4 outdoor ip camera,Dual IR-Cut filter auto switch,22pcs 850nm,5mm LED,15m night vision,ONVIF 2.4 protocol
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C33-X4
Model No. ：C33-X4 | ||
Feature | Feature | Auto focusing |
System | OS | Linux Built in Linux |
System security | Three level user authority management | |
Online user | 4 user view simultaneously | |
DDNS | Free DDNS | |
Protocol | ONVIF 2.4protocol | |
Processor | Hisilicon processor，built in ARM926 @Max. 440MHz and high-speed video co-processor | |
Collect | Image sensor | 1/4inch 720p Progressive Scan CMOS |
Sensor performance | Support AWB, AGC, BLC | |
Sensor size | 3.84mm×2.16mm | |
SNR | ≥39dB | |
Mini lumination | 0.8Lux/F1.４（color mode）,0.3Lux/F1.4（B&W mode） | |
Lens/viewing angel | ||
Night vision | Dual IR-Cut filter auto switch，22pcs 850nmΦ5mm LED，15m night vision | |
IR control | IR turned on: night vision view enabled, infrared ray, ICR auto detect. | |
Video | Compression | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
Video coding | 720P/24fps VGA/30fps QVGA/30fps 720P @1fsJPEG snapshot | |
Resolution | 720p/VGA/QVGA | |
Bit rate | CBR/VBR output bit rate range：128～4096kbps | |
Max frame rate | 30fps/24fps（720p） | |
Image adjust | Brightness, Contrast, Saturation, Sharpness are adjustable | |
Network | Interface | 10Mbps/100Mbps self-adaptable/RJ45 port |
Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,等 | |
WiFi | WiFi802.11b/g/n | |
WiFi configuration | Software setup | |
Storage | Storage mode | Local/client storage，up to 128GTF card. |
Interface | Micro SD | |
PT | Rotate angel | Tilt：90°，Pan：355° |
Preset position | 16 preset positions | |
Alarm | Alarm detection | Motion detection |
Alarm action | image E-mail/FTP upload/smartphone push | |
Physical index | Rated voltage | DC5±0.3V |
Power comsumption | Rated voltage：3.5Ｗ(IR turned on)/Max power consumption：7W(PT turned on) | |
Working environment | Working temperature：-10～50℃，working humidity<90% | |
Weight | Gross weight：1200g （only for reference） | |
Packing size | 250x170x260mm (LxWxH） | |
Note: Only for reference | ||
