- Size: 195x140x130mm
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C37A
- Weight: 0.755 kg
Product Abstract:

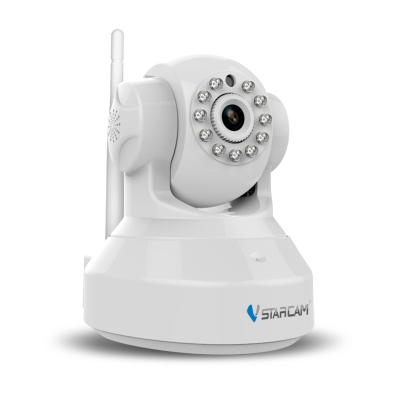

C37A 1.3MegaPixel IP ip camera,960P IP Camera,960P HD Lens,1/3inch 960p Progressive scan CMOS sensor
- Size: 195x140x130mm
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C37A
- Weight: 0.755 kg
|
Model No.C37A |
||
|
System |
OS |
Embedded Linux OS |
|
system security |
Three level user authority management |
|
|
online users |
support 4 online visitors simultaneously |
|
|
DDNS |
Free DDNS |
|
|
Control protocol |
ONVIF 2.4 protocol, high interoperability |
|
|
Processor |
Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor. |
|
|
Reset |
Long press for 15 seconds to restore back to factory settings |
|
|
Collection |
Image sensor |
1/3inch 960p Progressive scan CMOS sensor |
|
CMOS |
support AWB, AGC, AE |
|
|
SNR |
≥39dB |
|
|
Minimum illumination |
0.8Lux/F1.4(colourful model),0.3Lux/F1.(B&W mode) |
|
|
Lens/viewing angle |
||
|
Night vision |
Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance |
|
|
IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
|
Video |
Compression Format |
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
|
Video coding process |
Multi-stream:960P/360P/180P 720P @1fsJPEG snapshot |
|
|
Resolution |
960P/360P/180P |
|
|
Bit Rate |
CBR/VBR, output bit rate range:128~4096kbps |
|
|
Frame rate |
15fps |
|
|
Picture Adjustment |
Contrast, brightness, saturation, chroma are adjustable. |
|
|
Audio |
Input |
Built in -48dB Microphone |
|
Output |
Built in speaker(8Ω1W) |
|
|
Sampling frequency / width |
8KHz/16bit |
|
|
Compression format |
ADPCM/32kbps |
|
|
Network |
Interface |
10Base-T / 100Base-TX, RJ45 connector |
|
Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,ŒP2P,ONVIFetc. |
|
|
WIFI |
WiFi802.11b/g/n |
|
|
Antenna |
3dBi antenna,stronger signal, more stable |
|
|
Wireless network security |
one key setup WiFi, do not need network cable . |
|
|
storage |
Storage mode |
Local storage / client storage/NVS /NVR storage |
|
card |
support 64G TF card . |
|
|
Interface |
Micro SD |
|
|
Pan-Tilt |
P/T |
Pan:355°,Tilt:120° |
|
Preset Postion |
support up to 15 preset postions |
|
|
Limit method |
Software limit position, more accurate preset positions,lower Pan Tilt failure rate |
|
|
Alarm |
Motion detection |
Support motion detection |
|
Alarm action |
Image upload via email/FTP server |
|
|
Physical index |
Rated Voltage |
DC5/2A±0.3V |
|
Power comsumption |
Rated power:3.0W(IR ON) |
|
|
Working environment |
Working Temperature:-20~70℃,Working Humidity 90% |
|
|
Weight |
Gross Weight:755g(Note: in kind prevail) |
|
|
Housing material |
ABS plastics |
|
|
Camera size |
195x140x130mm (L×W×H) |
|
|
Installation |
Wall mounting, ceiling mounting |
|
|
Only for reference | ||
