- Size: 208x154x137mm
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C38S
- Weight: 0.755 kg
Product Abstract:

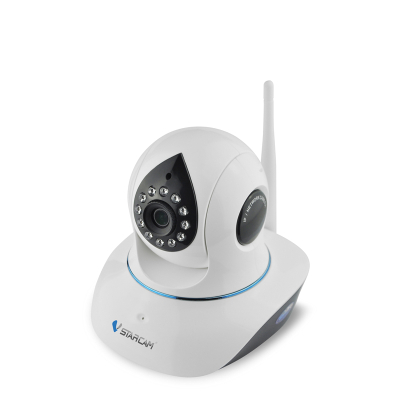

VStarcam C38S 1080p IP Camera,ONVIF 2.4 protocol, high interoperability,1/3inch 1080p Progressive scan CMOS sensor
- Size: 208x154x137mm
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C38S
- Weight: 0.755 kg
|
Model No.C38S |
||
|
System |
OS |
Embedded Linux OS |
|
online users |
support 4 online visitors simultaneously |
|
|
DDNS |
Free DDNS |
|
|
Control protocol |
ONVIF 2.4 protocol, high interoperability |
|
|
Processor |
Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor. |
|
|
Reset |
Long press for 15 seconds to restore back to factory settings |
|
|
Collection |
Image sensor |
1/3inch 1080p Progressive scan CMOS sensor(0v2710) |
|
CMOS |
support AWB, AGC, BLC |
|
|
SNR |
≥39dB |
|
|
Minimum illumination |
0.8Lux/F1.4（colourful model ）,0.3Lux/F1.（B&W mode） |
|
|
Lens/viewing angle |
||
|
Night vision |
Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance |
|
|
IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
|
Video |
Compression Format |
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
|
Video coding process |
Multi-stream：1080P/25fps 720P/25fps VGA/25fps 720P @1fsJPEG snapshot |
|
|
Resolution |
1080p/720p/VGA |
|
|
Bit Rate |
CBR/VBR, output bit rate range：128～4096kbps |
|
|
Frame rate |
25fps |
|
|
Picture Adjustment |
Contrast, brightness, saturation, chroma are adjustable. |
|
|
Audio |
Input |
Built in -48dB Microphone |
|
Output |
Built in speaker(8Ω1W) |
|
|
Sampling frequency / width |
8KHz/16bit |
|
|
Compression format |
ADPCM/32kbps |
|
|
Network |
Interface |
10Base-T / 100Base-TX, RJ45 connector |
|
Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,ONVIF etc. |
|
|
WIFI |
WiFi802.11b/g/n |
|
|
Antenna |
3dBi antenna，stronger signal, more stable |
|
|
Wireless network security |
one key setup WiFi, do not need network cable . |
|
|
storage |
Storage mode |
Local storage / client storage/NVS /NVR storage |
|
card |
support 64G TF card . |
|
|
Interface |
Micro SD |
|
|
Pan-Tilt |
P/T |
Pan:335°,Tilt:120° |
|
Preset Postion |
support up to 16 preset postions |
|
|
Limit method |
Software limit position, more accurate preset positions,lower Pan Tilt failure rate |
|
|
Alarm |
Motion detection |
Support motion detection |
|
Alarm action |
Image upload via email/FTP server |
|
|
Physical index |
Rated Voltage |
DC5/2A±0.3V |
|
Power comsumption |
Rated power：3.0w(IR ON) |
|
|
Working environment |
Working Temperature：-20～70℃，Working Humidity 90% |
|
|
Weight |
Gross Weight ：755g （Note: in kind prevail） |
|
|
Housing material |
ABS plastics |
|
|
Camera size |
208x154x137mm (L×W×H) |
|
|
Installation |
Wall mounting, ceiling mounting |
|
|
Only for reference | ||
