- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C95
Product Abstract:

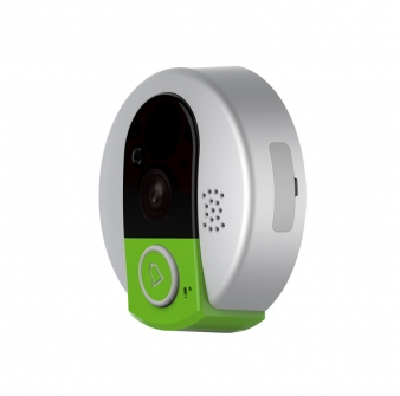

VStarcam C95 Doorcam Make Video phone call with visitors, and short time recording, known visitor information without door open.
- Place of Origin: shenzhen china
- Brand Name: Vstarcam
- Model Number: C95
Model No. :C95 | ||
Description | Product name | Doorcam |
Features | Make Video phone call with visitors, and short time recording, known | |
System | OS | Embedded Linux OS |
System security | Three-level user authority management | |
Online visitor | Support up to 4 online visitors simultaneously | |
DDNS | Built in free DDNS | |
Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor. | |
Collection | Image sensor | 4-inch 720p progressive scan CMOS sensor |
Sensor | support AWB,AGC,AE | |
Sensor size | 3.84mm×2.16mm | |
SNR | ≥39dB | |
Minimum illumination | 0.8Lux/F1.４（colourful model ）,0.3Lux/F1.（B&W mode） | |
Lens/viewing angle | 1.7mm@F2.４/96.96˚ | |
Night vision | Dual IR-CUT Filter auto switch, 1pcs 850nmΦ28mil super power LED,5m IR distance. | |
IR-Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. | |
Video | Compression standard | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
Video coding process | Multi stream:720P/24fps VGA/30fps QVGA/30fps 720P @1fsJPEG capture | |
Resolution | 720p/VGA/QVGA | |
Bit Rate | CBR/VBR, output bit rate range：128～4096kbps | |
Frame rate | 30fps/25fps（720p） | |
Image adjustment | Brightness,Contrast, Saturation are adjustable. | |
Audio | Input | 1 Channel Internal -48dB microphone |
Output | Internal speaker(8Ω1W) | |
Sampling frequency/ bits wide | 8KHz/16bit | |
Compression standard / bit rate | ADPCM/32kbps | |
Network | Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. |
WiFi | 802.11b/g/n | |
Network security | WPS encryption | |
Wireless Connection | AP hotspot | |
Record | Recroding mode | motion detection recording, doorbell button trigger recording |
Storage | SD card storage，support 128G TF Card | |
Physical indicators | Rated Voltage | DC5V±0.3V/1A |
Power supply | Mciro USB interface ,power supply 5V / 1A | |
Power consumption | Rated power：3.2w(IR on ) | |
Working temperature | Temperature: -10 ~ 50 ℃, Humidity <95% | |
Installation | Peephole installation for indoor , wall mounting installation for front door. | |
Housing material | ABS plastic | |
Note:Only for reference | ||
